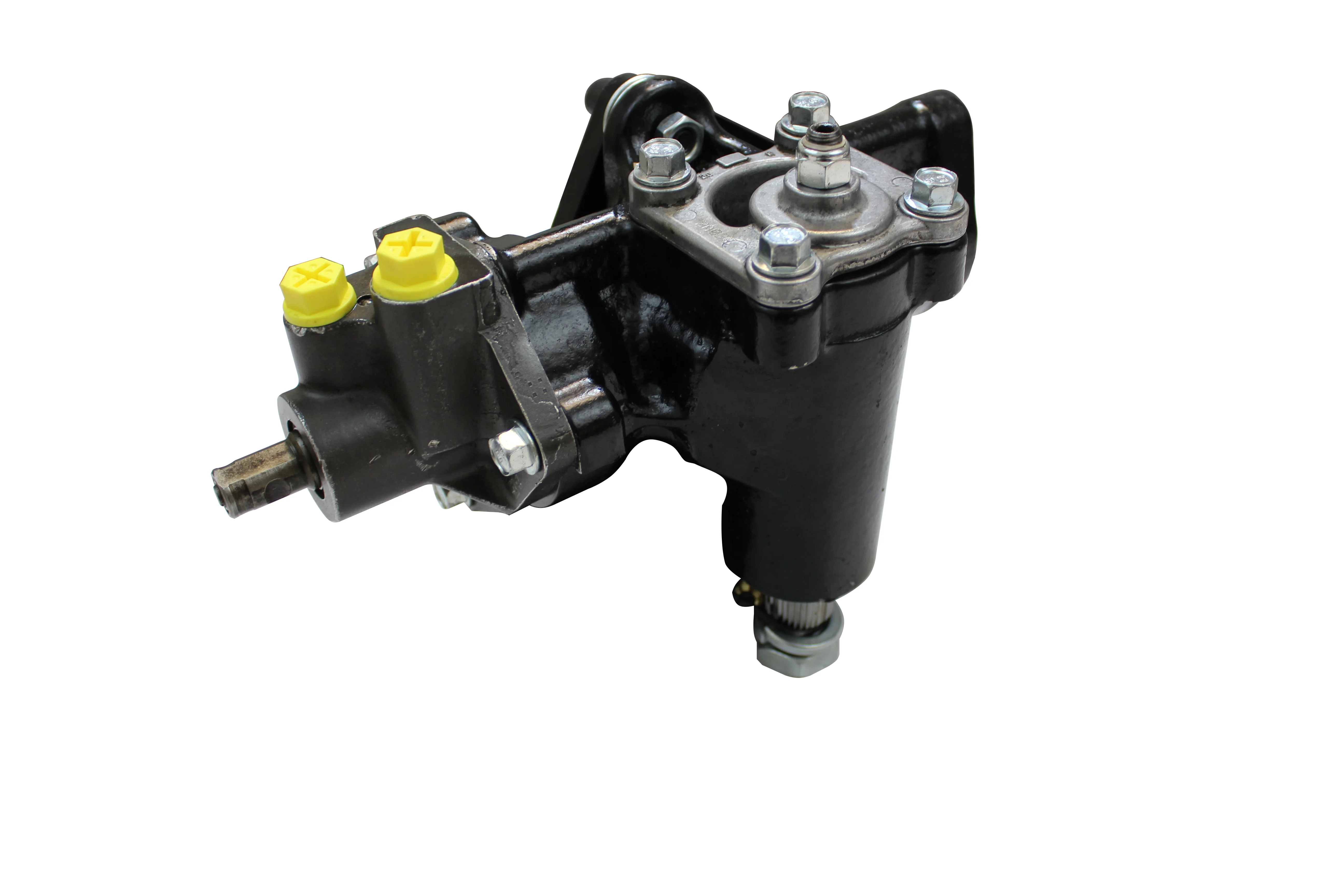

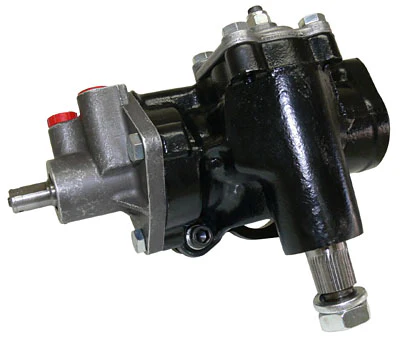

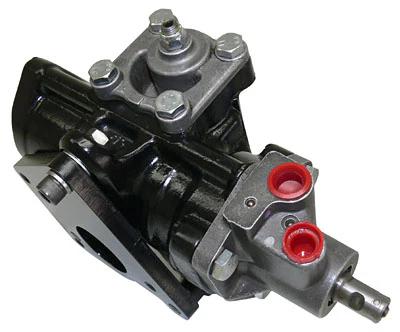

1958-64 Chevy Impala Power Steering Gear Box, 600 Series Delphi

Performance Online's 1958-64 Chevy Impala power steering gear boxes are built to precise specifications and tolerances. Gear box is based off of the Delphi 600 Series gear box. This Performance Gear Box utilizes the latest in steering technology including a rack and pinion style servo and specifically tuned effort characteristics. The result is quick response, precise control, and smooth operation (through out) the entire steering range. produces excellent road feel and driver feedback.



Includes mounting bracket and hardware

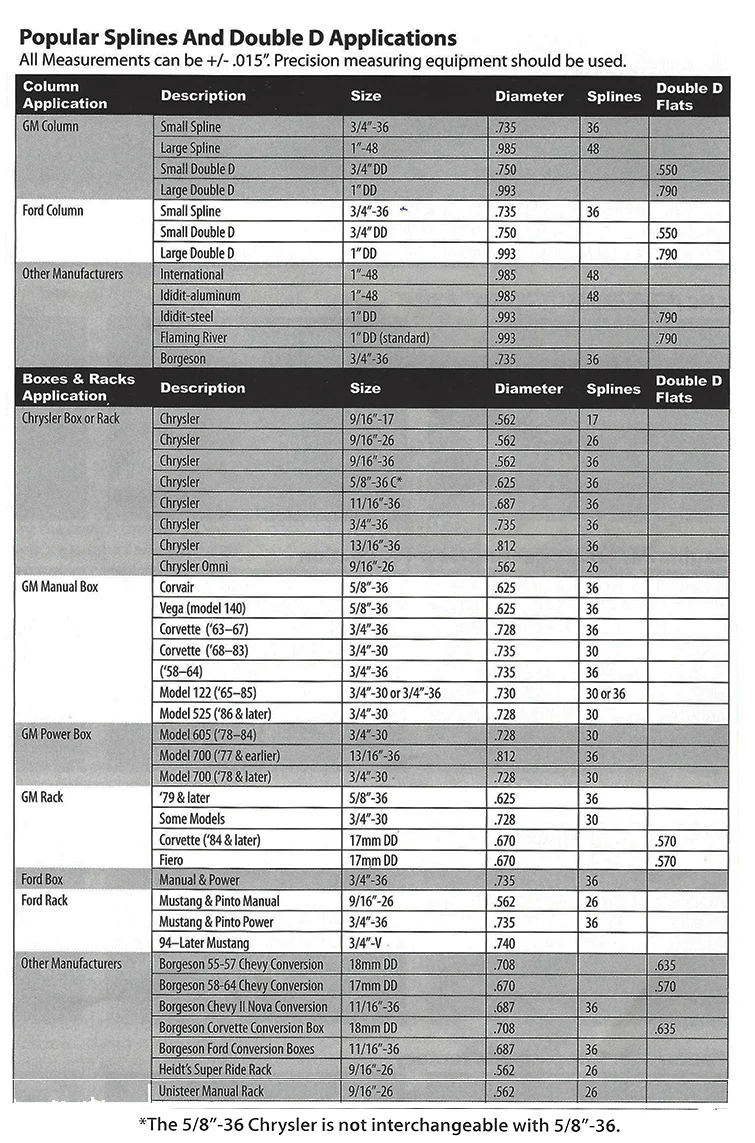

Pitman Shaft: 1-1/8" GM with 32 Splines and 4 Master Splines
Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
1958-1964 Chevy Impala, Biscayne, Bel Air, Caprice, Del Ray
