The Story

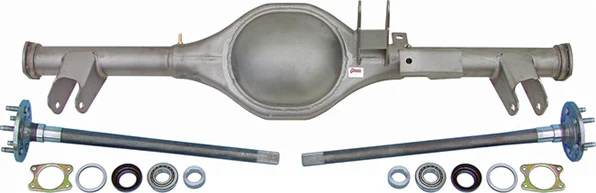

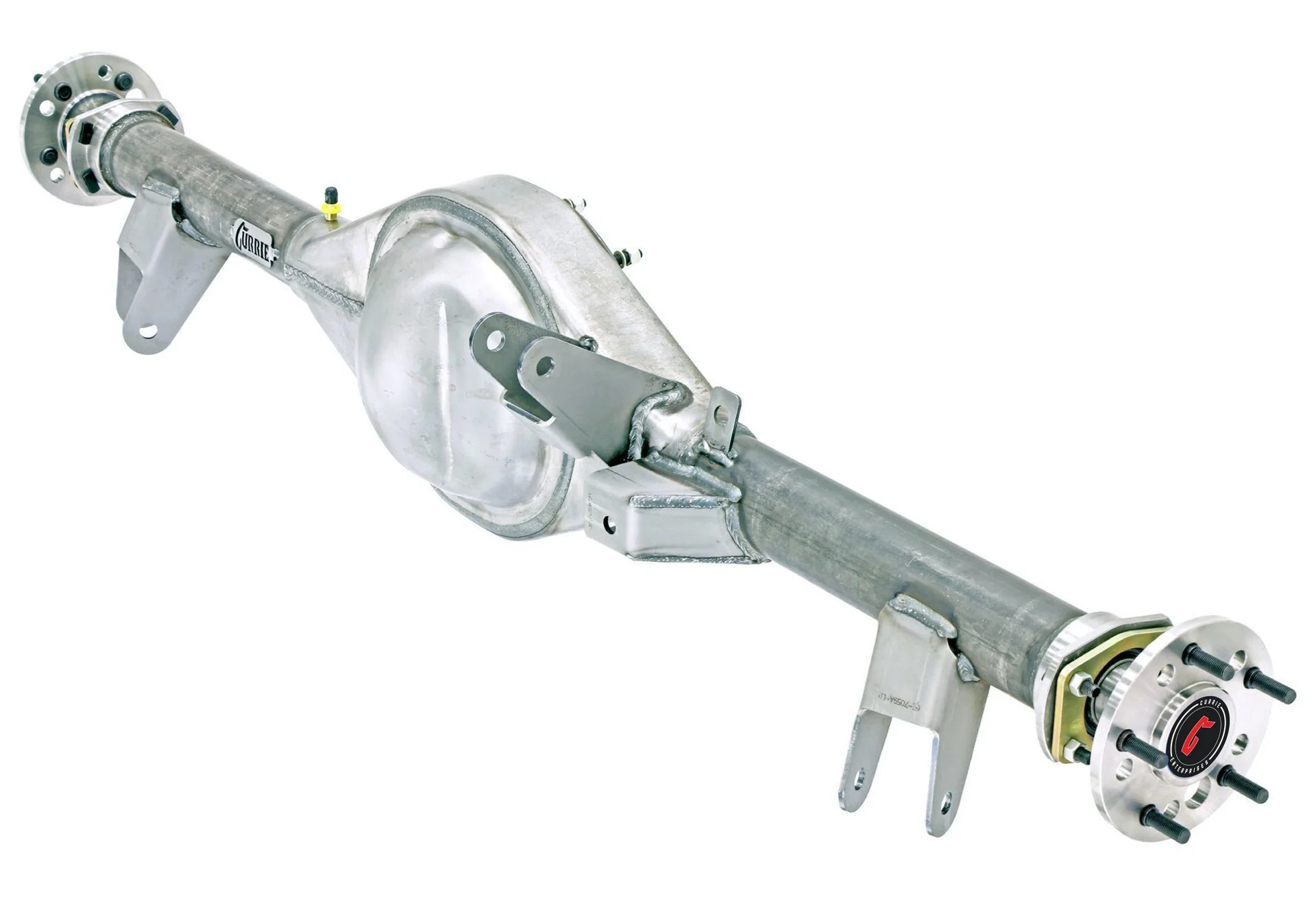

Specifically Designed for the 1959-64 Chevy Impala, Belair, Biscayne Lowriders, this rear end measures 57" WMS to accommodate and clear Fender Skirts and with installed smaller diameter reverse mount wheels typically found on Lowriders and Lowrods. All new laser cut and formed 3-link suspension and trac bar brackets are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them. Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition, ¼” . Thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes. Unit is 57" wide.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Specifically Designed for the 1959-64 Chevy Impala, Belair, Biscayne Lowriders, this rear end measures 57" WMS to accommodate and clear Fender Skirts and with installed smaller diameter reverse mount wheels typically found on Lowriders and Lowrods. All new laser cut and formed 3-link suspension and trac bar brackets are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them. Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition, ¼” . Thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes. Unit is 57" wide.
