The Story
This Power Rack and Pinion steering conversion kit for the 1963-65 Ford Fairlane uses a rear steer center take off rack & pinion mounted to a solid one piece bracket which bolts up to the frame using the original holes for the steering box and Idler Arm. This kit works with Small Block Motor cars only. It will fit with the 221, 260, 289, 302, and 351W motors. Installs have been done using Hooker Long Tube Headers or Competition Headers. Other headers may work, but may require modification.
|
Tech Info: |

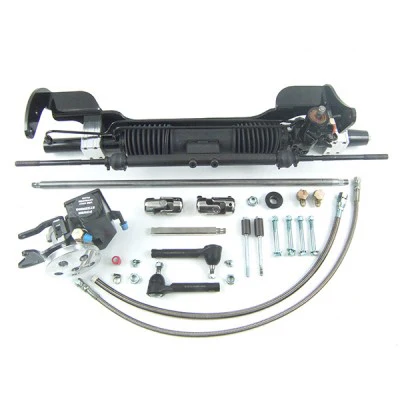

Kit Includes: |
| Pinion Type / Size: | 17mm DD | Rack & Pinion |
| Amount of Travel: | 6" | Outer Tie Rod Ends |
| Turns Lock to Lock: | 2.5 - 2.75 Turns | Mounting Bracket |
| Pressure Port Size: | 18mm - 6AN Banjo | Pump & Line Kit |
| Return Port Size: | 16mm - 6AN Banjo | Steering Shaft Kit |
| Pump Required: | Matched - Low or High | Mounting Hardware |
| Inner End Threads: | 9/16"-18 | |
| Outer ends: | Included |
Fits: 1963 1964 1965 Ford Fairlane
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This Power Rack and Pinion steering conversion kit for the 1963-65 Ford Fairlane uses a rear steer center take off rack & pinion mounted to a solid one piece bracket which bolts up to the frame using the original holes for the steering box and Idler Arm. This kit works with Small Block Motor cars only. It will fit with the 221, 260, 289, 302, and 351W motors. Installs have been done using Hooker Long Tube Headers or Competition Headers. Other headers may work, but may require modification.
|
Tech Info: |
Kit Includes: |
| Pinion Type / Size: | 17mm DD | Rack & Pinion |
| Amount of Travel: | 6" | Outer Tie Rod Ends |
| Turns Lock to Lock: | 2.5 - 2.75 Turns | Mounting Bracket |
| Pressure Port Size: | 18mm - 6AN Banjo | Pump & Line Kit |
| Return Port Size: | 16mm - 6AN Banjo | Steering Shaft Kit |
| Pump Required: | Matched - Low or High | Mounting Hardware |
| Inner End Threads: | 9/16"-18 | |
| Outer ends: | Included |
Fits: 1963 1964 1965 Ford Fairlane
