FiTech Ultimate Tall LS1, LS2, LS6 EFI Induction Kit

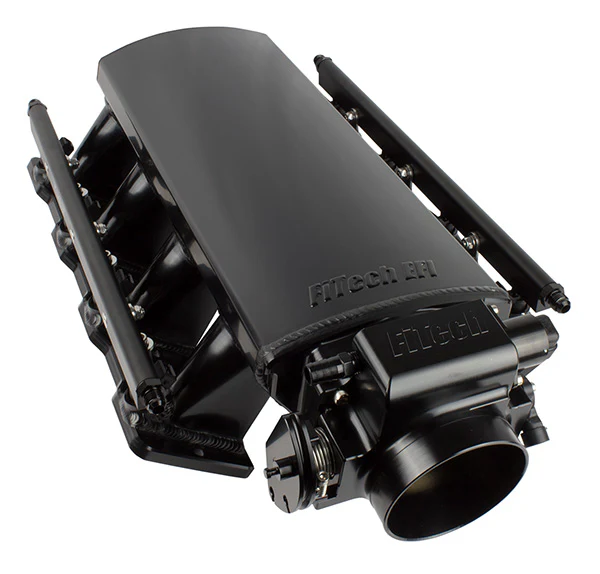

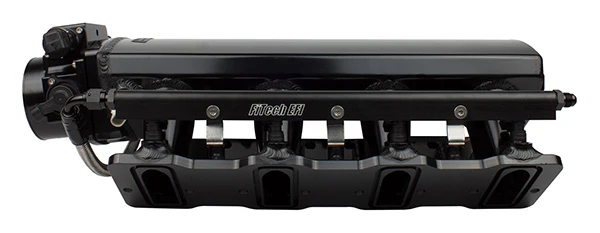

The Ultimate Tall LS1, LS2, LS6 500HP Intake Manifold Kit with 92mm Throttle Body is a complete self-tuning induction systems for LS engines and designed for the do-it-yourself hot rodder to the professional builder. This EFI system includes everything needed to complete the induction system on your LS engine and get you on the road. These kits are E85 Fuel compatible with slight modifications during set up.

Application

• Intake manifold will fit Cathedral Port LS1/LS2/LS6 heads.
• Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines 750 HP to the flywheel.
  • 4.8 L / 293 c.i. LR4, LS1, LS2, LS6
  • 5.3 L / 325 c.i. L33, L59, LM4, LM7
  • 5.7 L / 346 c.i. LS1, LS6
  • 6.0 L / 364 c.i. LQ4, LQ9, LS2
• Intake manifold is 9" inches tall.

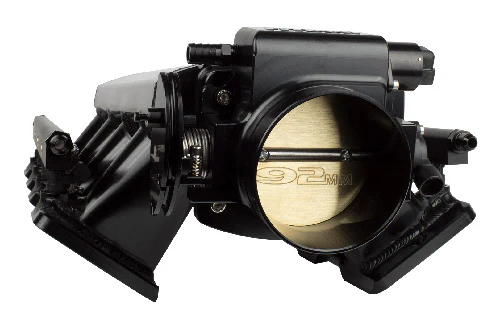

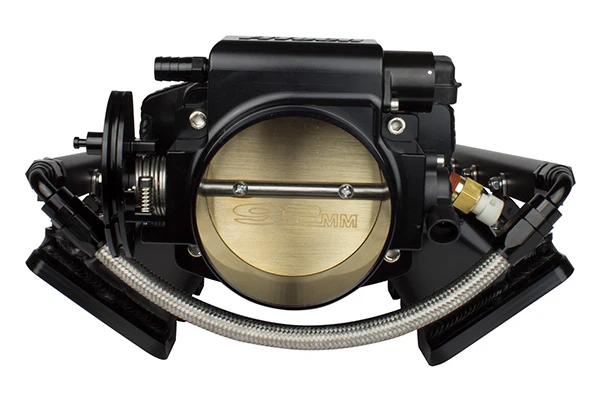

• 500hp kit includes 92mm high flow cable operated throttle body
• 750hp kit includes 102mm high flow cable operated throttle body
• Throttle body will clear any stock truck accessories depending on the type of water pump, if there is truck water pump accessory clearance interference you will need to get a new water pump bracket.
