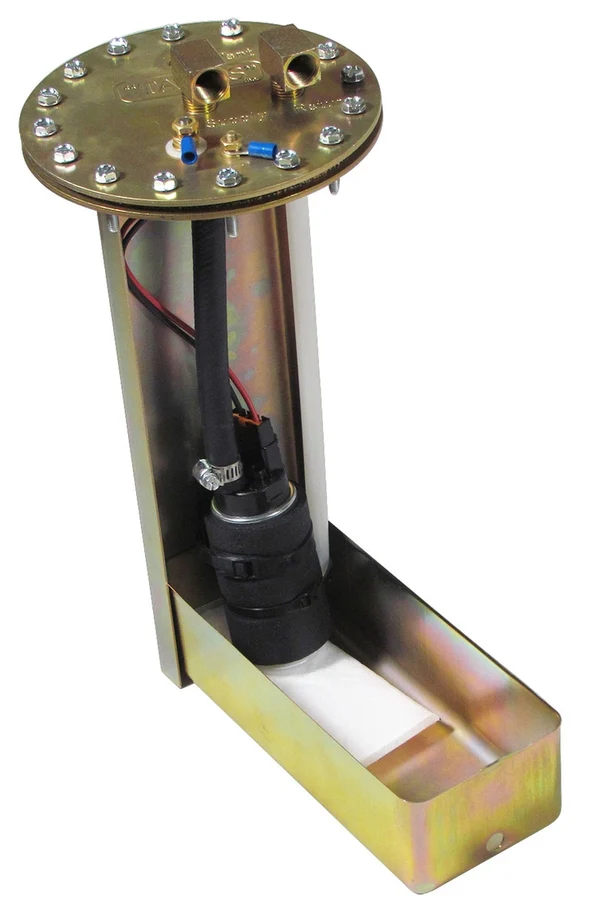

Universal In-Tank Retrofit EFI Fuel Pump Kit for OE Tanks

This In-Tank Fuel Pump module can be used to retrofit an internal fuel pump into your original gas tank.  This kit gives you everything that you need to install an internal fuel pump into nearly any tank.  Fuel pump kit features a reservoir tray that eliminates fuel pump starvation that is common on non-baffled tanks.  A properly installed internal fuel pump will essentially eliminate any issues that are common on external fuel pumps such as vapor lock and cavitation.  The pumps listed are capable of running up to 100 PSI and they will deliver a varying amount of fuel (gallons per hour) depending on the pressure.

Requires a 4.5" dia hole

Note:  Maximum tank depth of 10.5 inches with no modification, minimum tank depth of 6 inches. Requires a 4.5" mounting hole

PA-2  Deluxe 190 Liter Per Hour Pump

• 54 GPH @ 40 PSI
• 50 GPH @ 50 PSI
• 48 GPH @ 60 PSI

PA-4  High Flow 250 Liter Per Hour Pump

• 68 GPH @ 40 PSI
• 65 GPH @ 50 PSI
• 62 GPH @ 60 PSI

PA-6  High Performance 400Liter Per Hour Pump (500 - 1000 Horsepower)

• 106 GPH @ 40 PSI
• 99   GPH @ 50 PSI
• 91   GPH @ 60 PSI

NOTE: All Flow Rates Are At 13.5 Volts
